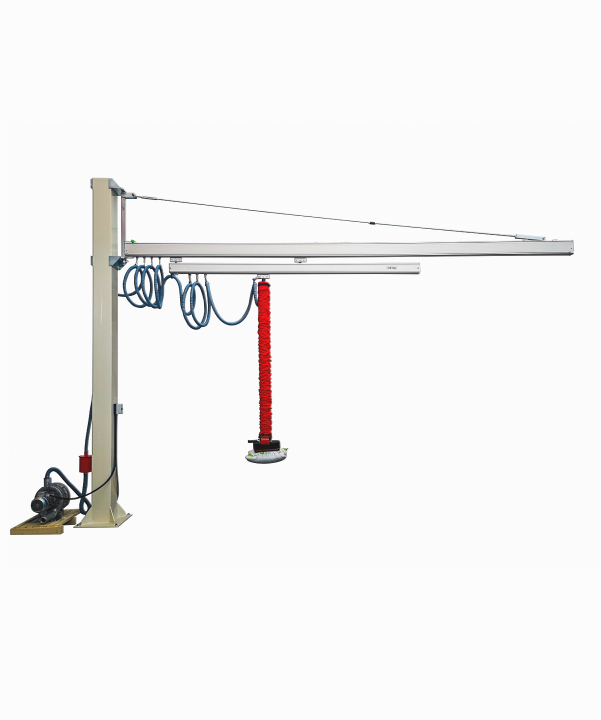

AG059 Tube Lifter

The AG059T tube lifter is an advanced lifting solution designed to handle medium to small loads over large areas, including rectangular spaces. It features a telescopic arm system, allowing for smooth operation even in environments where obstacles like walls or columns are present.



Send an inquiry

AG059 Tube Lifter

The AG059T tube lifter is an advanced lifting solution designed to handle medium to small loads over large areas, including rectangular spaces. It features a telescopic arm system, allowing for smooth operation even in environments where obstacles like walls or columns are present.

Key Specifications:

  • Maximum Radius: 7500 mm
  • Net Load Capacity: Up to 50 kg

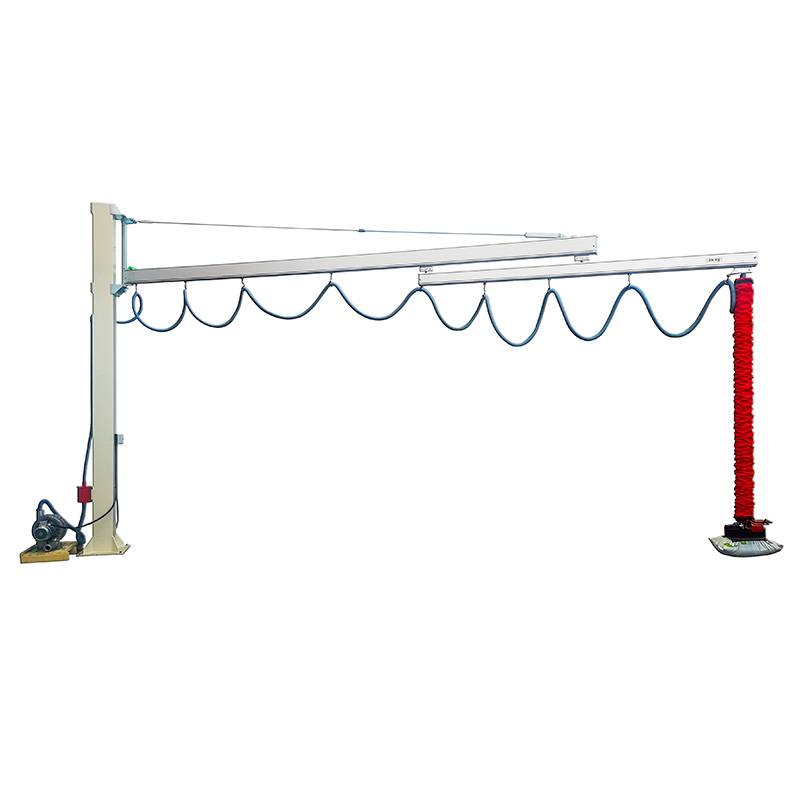

  • Telescopic Arm Design: The telescopic arms allow the lifter to easily bypass obstacles such as walls or columns, ensuring unobstructed movement.

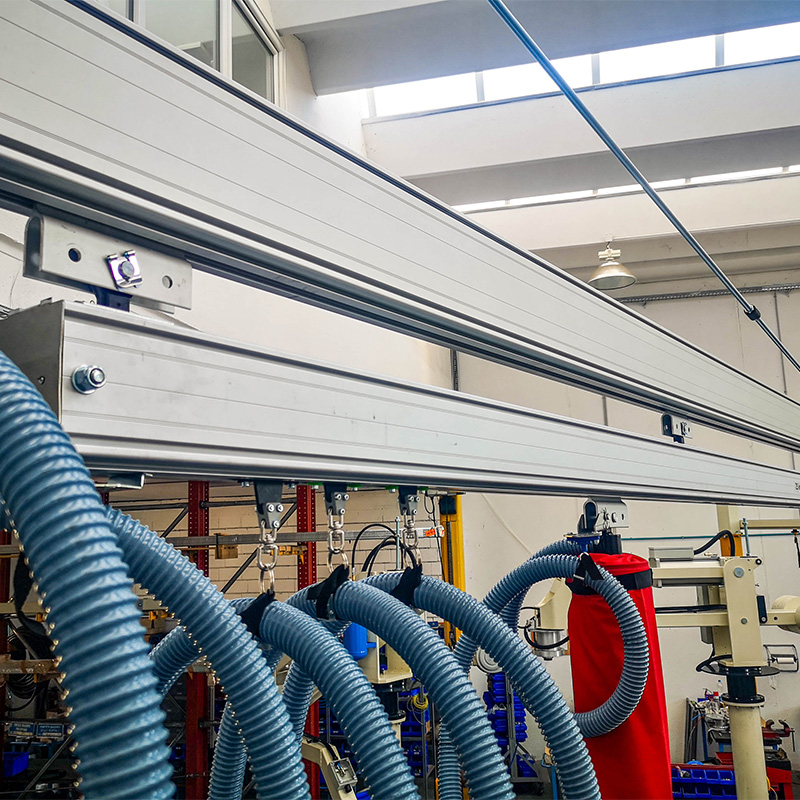

  • Extruded Aluminum Arms: The upper and lower telescoping arms are made from durable extruded aluminum, offering both strength and lightweight performance.

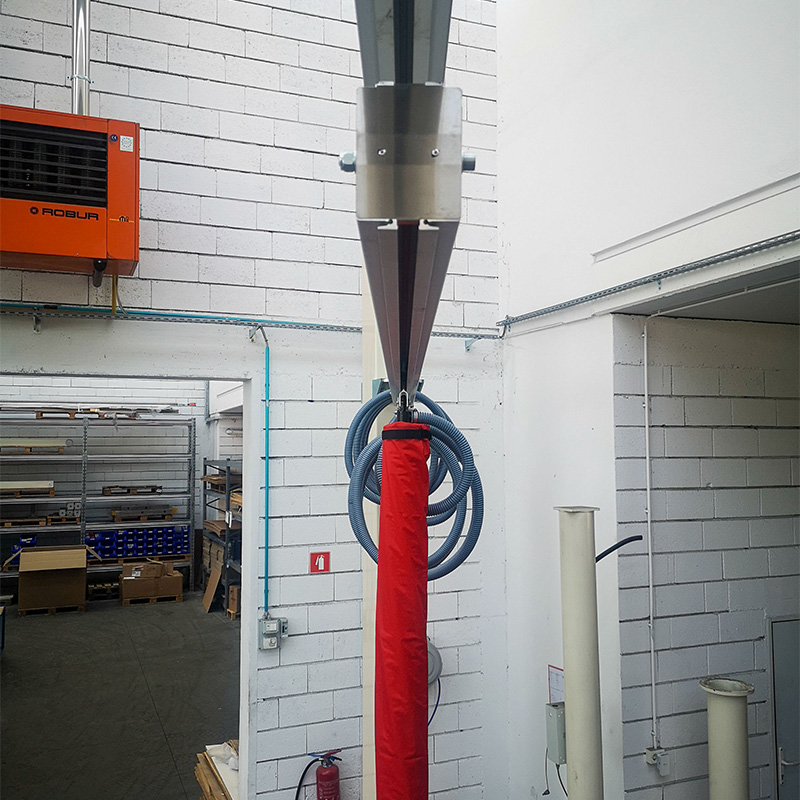

  • Internal Sliding Carriages: Carriages slide internally within the arms, enhancing the machine’s compactness and reducing the risk of external damage.
  • Versatile for Large Areas: Ideal for handling medium and small loads over large and even rectangular areas, increasing operational flexibility.
  • Column Section: 250x250 mm
  • Base Plate Dimensions: 560x560 mm
  • Fixing Hole Distance: 480x480 mm

Industry Applications:

  • Obstacle-Rich Environments: The telescopic arm is perfect for environments where obstacles such as walls, columns, or other infrastructure limit free movement.
  • Large Area Operations: Suitable for extensive areas, especially in warehouses or industrial spaces where long-reaching lifting is required.
  • Compact Lifting in Tight Spaces: The internal sliding carriages and telescopic design make this model a perfect choice for spaces that require both reach and space optimization.

This tube lifter provides robust performance, excellent maneuverability, and adaptability for complex operational settings.

AG059 Telescopic Tube Lifter: Efficiency and Power for Large Spaces

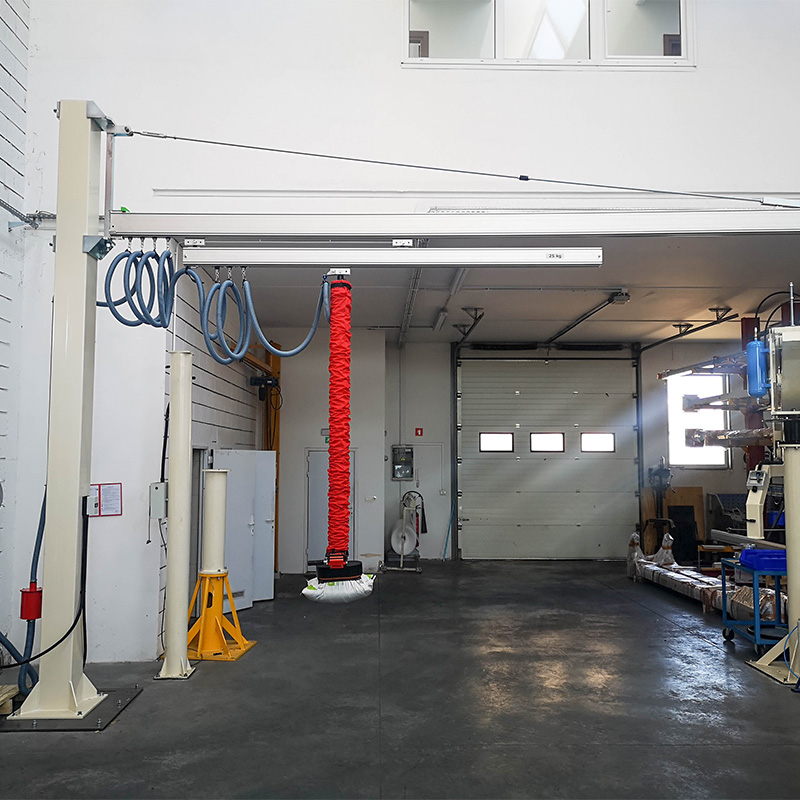

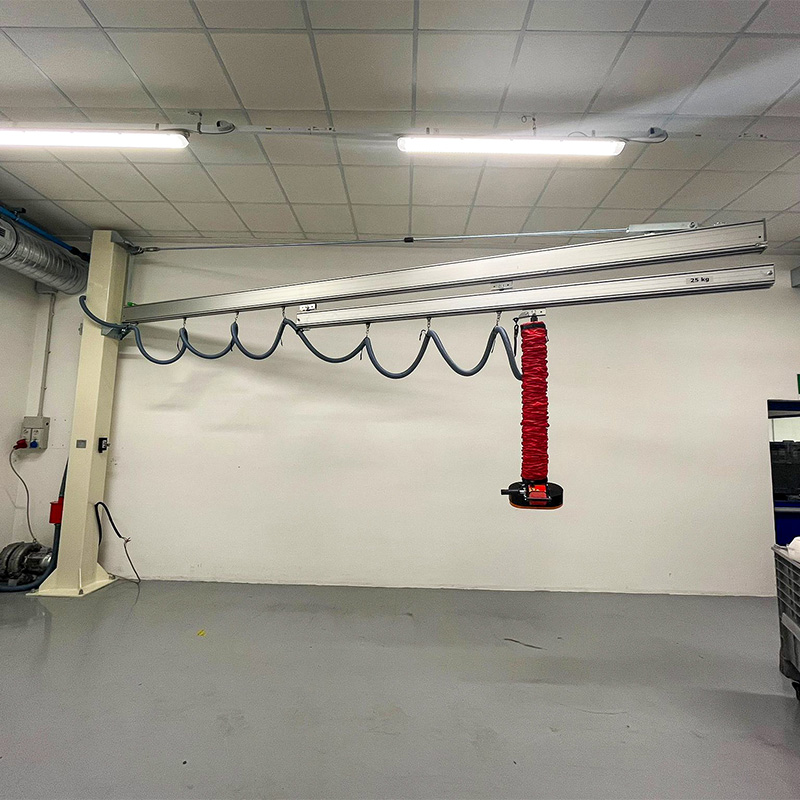

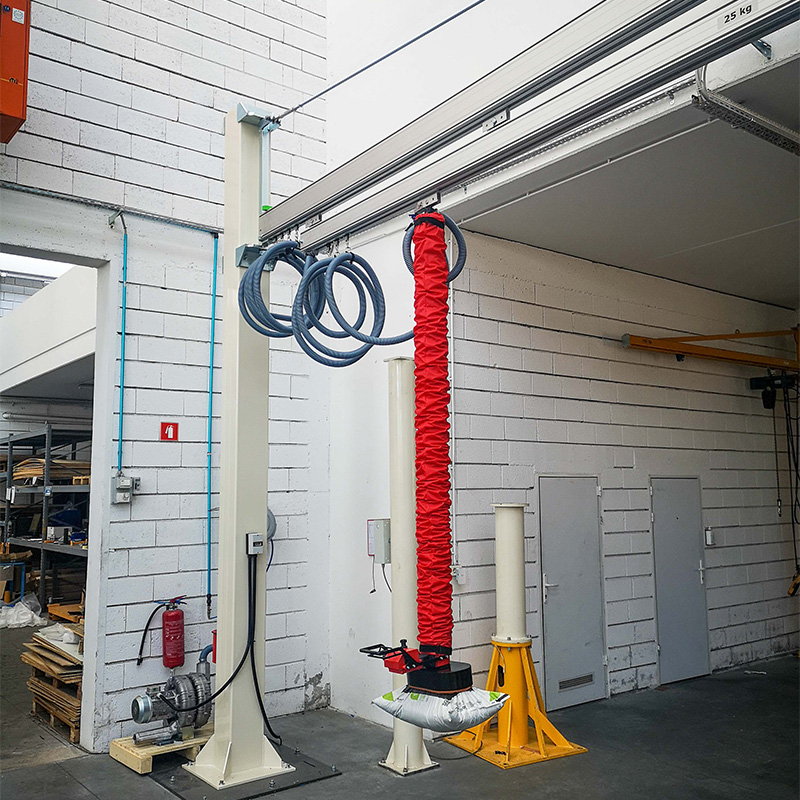

Gallery

See TubeLifters in Action

Want to see how our systems perform in real-world environments? Check out installation demos and product showcases on our YouTube channel.

Expand Your Operations Horizontally with the AG059 Tube Lifter

The AG059 Tube Lifter sets a new standard for long-reach lifting in industrial environments. With a maximum radius of 7,500 mm and a load capacity of up to 50 kg, it’s the ideal solution for covering large workspaces such as production halls, warehouses, and logistics centers.

This model features a telescopic arm made of high-grade extruded aluminum, combining strength, durability, and lightweight performance. Its telescopic function enables operators to navigate around obstacles such as support columns, machinery, or shelving, without losing precision or efficiency. Internally sliding carriages reduce wear and ensure smooth, reliable performance.

With a column section of 250×250 mm and a base plate of 560×560 mm, the AG059 ensures maximum stability, even under dynamic conditions. Its fixing hole spacing of 480×480 mm allows for quick and secure installation, whether the lifter is floor-mounted or integrated into an overhead system.



Industry Applications and Use Cases

  • Manufacturing & Assembly: Ideal for moving parts between workstations or into machines.

  • Food & Beverage: For transferring bulk packaged goods or crates in sanitary production zones.

  • Warehouse & Distribution: A reliable tool for picking, stacking, and loading items up to 110 kg.

The AG057 is engineered to reduce physical effort, downtime, and safety incidents, while boosting throughput in operations where efficiency and ergonomics are non-negotiable.

Ready to Maximize Reach and Efficiency with the AG059?

If your business requires a vacuum lifting solution with exceptional horizontal reach, smooth operation, and robust structural stability, the AG059 Tube Lifter is the right tool for the job. It offers a combination of reach, control, and ergonomic performance that reduces operator strain and boosts productivity.

Contact our team today for a custom consultation or quote.

You can also explore related models that match different operational needs:

Contact our technical team today

We’ll help you explore if the AG057 is the optimal solution — or guide you toward other models in our lineup such as:

Send an inquiry

Frequently Asked Questions (FAQ) about the AG059 Tube Lifter

What is the reach of the AG059 Tube Lifter?
The lifter offers a horizontal reach of up to 7,500 mm, making it perfect for large rectangular or wide-area work zones.

What is the maximum weight it can handle?
The AG059 is designed to lift loads up to 50 kg, making it suitable for medium-duty lifting across various industries.

What are the main benefits of the telescopic arm?
The telescopic design allows the arm to extend and retract around obstacles, enhancing workflow flexibility and safety in space-constrained environments.

What materials are used in its construction?
Both upper and lower arms are made of extruded aluminum, providing durability and reduced total weight. The internal sliding system helps protect moving parts and ensures smooth operation.

Where is the AG059 most commonly used?
It performs best in warehouses, production facilities, distribution centers, and any workspace where extended horizontal reach is essential.

Is installation straightforward?
Yes. The robust base plate and pre-defined fixing hole pattern make the AG059 quick to install and compatible with most industrial floor plans.
