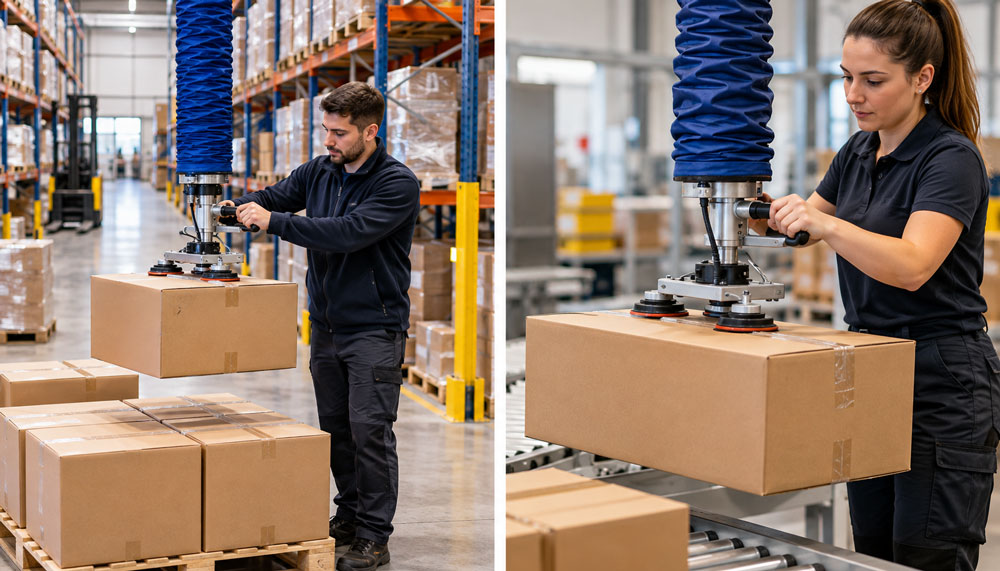

A vacuum lifter for boxes makes repetitive carton handling faster, safer and significantly easier for the operator. Instead of manually lifting, carrying and positioning every box, the operator uses vacuum assistance to grip the load, lift it and guide it to the required position with minimal physical effort.

Adria Manipulatorji provides vacuum lifting solutions for cardboard boxes and cartons used in warehouses, logistics centers, packaging lines, production facilities and order picking operations. Each application is evaluated according to the actual box weight, dimensions, surface, handling frequency and workstation layout.

If your operators repeatedly move cartons between pallets, conveyors, racks or workstations, a vacuum lifter for boxes can help reduce physical strain while creating a faster and more consistent material handling process.

Tell us what boxes you need to lift. Send us the approximate weight, dimensions, surface type and a photo of your cartons, and our team can help evaluate a suitable vacuum lifting solution for your application.

Why Use a Vacuum Lifter for Boxes?

Box handling often appears simple because individual cartons may not seem exceptionally heavy. The real challenge is usually repetition. In warehouse, logistics and production environments, operators may perform the same lifting movement throughout the working day.

Manual handling becomes particularly demanding when boxes must be picked from different heights, transferred between a conveyor and pallet, moved across a workstation or positioned repeatedly at a fast working pace.

A properly configured vacuum box lifter transfers the lifting effort from the operator to the vacuum lifting system. The operator controls and guides the movement instead of carrying the full weight of the carton manually.

This can provide important operational benefits:

• Reduced physical strain – less manual lifting effort for repetitive box handling tasks.
• Improved ergonomics – the system supports the operator when lifting and positioning cartons.
• More consistent handling – reduced fatigue can help maintain a stable working rhythm during repetitive operations.
• Controlled box movement – the operator can guide the carton between pickup and placement positions.
• Support for repetitive workflows – particularly useful for palletizing, depalletizing, order picking and production-line handling.
• Application-specific configuration – the lifting solution can be selected according to the actual cartons and workstation.

Vacuum Box Lifter Applications

A vacuum box lifter is especially useful where cardboard boxes or cartons are handled repeatedly as part of an everyday material flow. Rather than approaching box lifting as an isolated task, the complete movement from pickup to placement should be considered.

Palletizing and depalletizing boxes

Moving cartons between a pallet and conveyor, packing station or production line can require frequent bending, reaching and lifting. Vacuum assistance allows the operator to grip the box and guide it through the required movement with less physical effort.

Warehouse order picking

In order picking operations, operators may handle boxes of different sizes and weights throughout a shift. The right box handling equipment can support repetitive transfers between pallets, picking positions and dispatch areas while reducing dependence on manual lifting strength.

End-of-line carton handling

At the end of a packaging or production line, cartons often need to be removed from conveyors and stacked onto pallets. If manual handling cannot keep pace with the process or operator fatigue becomes a limiting factor, a vacuum lifting solution can help create a more ergonomic and consistent workflow.

Loading and unloading workstations

Vacuum lifters can also support repeated movement of boxes between production equipment, packing stations, conveyors, pallets and other defined pickup and release positions.

Distribution and logistics centers

High-frequency carton handling is common in distribution environments. Here, the value of a carton lifter is not limited to the weight of an individual package. Handling frequency, reach, working height and the total movement performed by the operator are equally important.

Vacuum Lifter for Cardboard Boxes: The Box Surface Matters

Selecting a vacuum lifter for boxes is not simply a matter of choosing sufficient lifting capacity. Cardboard introduces specific gripping considerations because its surface can behave differently from smooth, airtight materials.

Corrugated cardboard may allow air leakage through the material. Tape, seams, labels, folds and the construction of the top of the box can also affect the available gripping area.

For this reason, two boxes with similar dimensions and weight do not necessarily require exactly the same gripping solution.

When evaluating a cardboard box lifter, important factors include:

• box weight;
• minimum and maximum box dimensions;
• cardboard type and surface condition;
• surface porosity;
• tape and seam positions;
• available area for vacuum gripping;
• rigidity of the carton;
• handling frequency;
• pickup and placement positions;
• required reach and available workspace.

This is why the suction cup or gripping head should be selected for the actual packaging rather than treating all cardboard cartons as identical loads.

Send an inquiry

Choosing the Right Suction Cup for Carton Handling

The suction cup is the physical interface between the lifting system and the box. Its job is not simply to touch the carton, but to create and maintain suitable contact while the operator lifts, moves and positions the load.

A generic suction cup is therefore not automatically suitable for every carton. The gripping concept can depend on box size, stiffness, surface porosity and the position of seams or tape.

For mixed carton handling, different product formats may also need to be considered during system selection.

For a deeper technical explanation, see our guide to selecting a vacuum lifter and suction solution for the actual load and our Wiki content on handling porous loads with vacuum tube lifters.

Box Handling Equipment Should Fit the Complete Workflow

The best box handling equipment is not selected from load weight alone. The complete handling cycle should be evaluated.

Consider an operator moving cartons from a conveyor to a pallet. The box weight is important, but the lifting solution also has to account for where the box is picked up, how far it must travel, the required lifting height, available working area and how frequently the cycle is repeated.

A useful application assessment therefore considers three areas.

1. The box

• minimum and maximum weight;
• minimum and maximum dimensions;
• cardboard and packaging construction;
• surface condition and porosity;
• available gripping area.

2. The movement

• pickup position;
• placement position;
• lifting height;
• horizontal reach;
• required movement direction;
• number and frequency of lifting cycles.

3. The workplace

• available floor and overhead space;
• position of conveyors, pallets or machinery;
• working height;
• obstacles within the operating area;
• production or warehouse environment.

Evaluating these factors helps create a lifting solution around the actual process instead of forcing an existing workflow to adapt to generic equipment.

Vacuum Lifters for Boxes in High-Frequency Handling

Repetition is one of the strongest reasons to consider a vacuum lifter for boxes. Even relatively manageable cartons can become physically demanding when the same lifting cycle is performed continuously.

This is particularly relevant in:

• warehouses and distribution centers;
• order picking areas;
• packaging operations;
• production lines;
• palletizing and depalletizing stations;
• goods receiving and dispatch areas.

The objective is not simply to lift a heavier box. It is to make the entire repetitive handling process easier for the operator and more consistent for the business.

See how vacuum lifting can address repetitive carton handling in our warehouse and logistics material handling case study.

Send an inquiry

Which Tube Lifter Is Suitable for Boxes?

The appropriate model depends on the application. Adria Manipulatorji offers several Tube Lifter configurations, and the correct choice should be based on the actual box and handling process rather than selecting a model solely from its maximum capacity.

For example, the AG033 Tube Lifter is used for applications including box lifting, sack handling and palletizing. Other Tube Lifter models are available for different load ranges, reaches and working requirements.

You can also explore the complete Tube Lifter range before discussing your application with our team.

However, you do not need to know which model you require before requesting a quotation. Start with your boxes and your workflow. The technical configuration can then be evaluated around those requirements.

From Box Specifications to a Complete Vacuum Lifting Solution

A reliable carton handling equipment solution requires more than selecting a machine with sufficient lifting capacity. The complete system may involve the vacuum generation, lifting tube, suction cup or gripping head, controls, required reach and support structure.

These elements need to work together around the real load and workstation.

For companies handling multiple carton formats, the evaluation should also identify how much the boxes vary. Differences in dimensions, weight, cardboard quality and gripping surface can influence whether the same gripping configuration is suitable across the entire product range.

This application-specific approach is particularly valuable in warehouses and production facilities where one workstation may handle several products during the same shift.

What Information Do We Need for Your Box Lifting Application?

You do not need to prepare a complete technical specification before contacting Adria Manipulatorji. A few practical details about the cartons and workflow are enough to start evaluating a vacuum lifter for boxes.

Please send us:

• box weight – minimum and maximum if several products are handled;
• box dimensions – length, width and height;
• surface information – cardboard type, coating, tape, seams or other relevant characteristics;
• photos – especially the surface where the box could be gripped;
• pickup and placement positions – for example conveyor to pallet, pallet to workstation or order picking;
• handling frequency – how often boxes are moved;
• workspace information – available area, lifting height and required reach.

Based on this information, the application can be assessed and a suitable vacuum lifting and gripping concept can be considered.

Why Choose Adria for Vacuum Box Handling?

Adria Manipulatorji focuses on the complete material handling application rather than simply matching a load weight to a product specification.

For box and carton handling, this means considering the relationship between the packaging surface, suction cup, vacuum system, lifting requirements and workstation layout.

The result is a solution configured around what operators actually need to do: pick up the box, move it and position it efficiently with less physical effort.

Whether you need a vacuum box lifter for palletizing, a carton lifter for a packaging line or ergonomic box handling equipment for warehouse order picking, the starting point is the same: the real load and the real process.

Request a Vacuum Lifter for Boxes

Still lifting boxes manually? Send us the details of your application and let us evaluate a more ergonomic handling solution.

You do not need to select the Tube Lifter model or suction cup yourself. Tell us what you are lifting, how heavy the boxes are, their dimensions, how frequently they are handled and where they need to be moved.

For an initial assessment, photos of the cartons and workstation are especially useful.

Adria Manipulatorji can help you identify a vacuum lifter for boxes configured around your cartons, workspace and material handling process.

Send an inquiry

FAQ: Vacuum Lifters for Boxes

What is a vacuum lifter for boxes?

A vacuum lifter for boxes is a lifting aid that uses vacuum to grip a carton and assist the operator with lifting, moving and positioning it. It reduces the physical effort required for repetitive manual box handling.

Can a vacuum lifter handle cardboard boxes?

Yes, vacuum lifters can handle cardboard boxes when the system and suction cup are correctly configured for the packaging. Cardboard porosity, seams, tape, surface condition and available gripping area should all be considered.

Can a vacuum box lifter handle different box sizes?

Potentially, yes. The suitability of one system for different cartons depends on the variation in box dimensions, weight, surface and available gripping area. The complete product range should therefore be evaluated before selecting the gripping configuration.

Where are vacuum box lifters typically used?

Typical applications include warehouses, distribution centers, production facilities, packaging lines, order picking stations and palletizing or depalletizing areas where boxes are handled repeatedly.

Which vacuum lifter do I need for my boxes?

The correct solution depends on box weight, dimensions, surface, handling frequency, required movement and available workspace. You do not need to select the model yourself. Send us your application details and we can help evaluate a suitable configuration.

What information should I send when requesting a quotation?

Send the minimum and maximum box weight and dimensions, photos of the cartons, information about the cardboard surface, pickup and placement positions, handling frequency and available workspace. These details provide a useful basis for evaluating the application.

Are vacuum lifters suitable for order picking?

Yes. Vacuum lifting can be particularly useful for repetitive order picking and load transfer where operators frequently move cartons between pallets, workstations, conveyors or other defined positions.

Find the Right Vacuum Lifter for Your Boxes

Send us your box details and let us evaluate your application.

Tell us the weight and dimensions of your cartons, how frequently they are handled and where they need to be moved. Add a few photos of the boxes and workstation, and our team can help identify a suitable vacuum lifting and gripping solution.

You do not need to know which Tube Lifter model or suction cup you need.
