Tube Lifters in Action: Real-World Case Studies in Heavy Load Handling

In today’s fast-paced industrial environments, businesses are constantly searching for ways to improve efficiency, reduce injuries, and optimize workflows. One of the smartest and most cost-effective solutions is the use of tube lifters – vacuum-powered systems that make material handling easier, faster, and safer.

In this article, we’ll explore two real-life vacuum lifter case studies, where Adria Manipulatorji provided tailor-made lifting solutions for demanding environments. Whether it’s lifting concrete bases or handling frozen meat lifting challenges, these examples highlight how tube lifters solve complex challenges with smart simplicity. We'll also dive into why these systems are the gold standard in ergonomic handling.

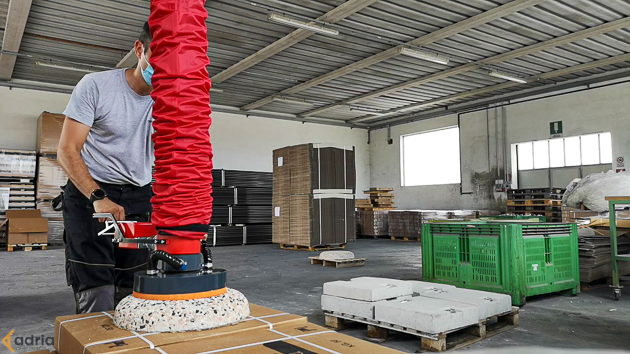

Tube Lifters for Lifting Concrete Umbrella Bases

The Challenge: Irregular Loads, Low Value, High Frequency

A client needed to move concrete umbrella bases weighing up to 70 kg each. These came in various sizes and shapes, were hard to grip, and had a central hole that reduced vacuum suction. The solution had to be efficient and affordable due to the product’s low retail value.

The Obstacles:

• Uneven and irregular surfaces
• Central hole reduced available suction area
• Lifting from near-ground level
• High volume, low margin product

The Vacuum Lifting System Solution:

• A single round suction pad with soft foam rubber to seal the center hole
• A high-vacuum pump to reduce leakage and ensure grip

Result: One tool fits all base types, offering a safe, flexible, and affordable alternative to complex mechanical grippers.

Tube Lifters for Frozen Meat Lifting

The Challenge: Food Safety, Stuck Products, and Fragility

In the food industry, hygiene and speed are non-negotiable. A client needed to lift frozen meat blocks from pallets to a conveyor. The blocks often stuck together and had uneven surfaces, and grippers were not permitted due to hygiene constraints.

The Key Issues:

• Frozen blocks stick together
• No room for clamps or grippers
• Irregular surfaces
• Strict food-grade compliance

The Ergonomic Vacuum Handling Solution:

• Fully stainless steel vacuum tube lifter
• Flexible silicone suction cup
• High-performance turbine
• Controlled lift-release to detach blocks gently

Result: Operators work faster and safer, while meeting hygiene standards and avoiding fatigue or injury.

Why Tube Lifters Are the Smart Choice for Ergonomic Handling

These tube lifter case studies show that vacuum lifting systems offer unmatched safety and flexibility. Compared to mechanical solutions, tube lifters:

• Adapt to various surfaces and shapes
• Require only compressed air — no electricity
• Reduce operator fatigue and injury risk
• Improve throughput and workflow speed

Whether lifting cardboard, concrete, or frozen meat, Adria Manipulatorji’s systems are simple, robust, and tailored to your needs.

Industries That Benefit from Tube Lifters

Our tube lifters are used in industries such as:

• Warehousing & Logistics
• Food and Meat Processing
• Furniture Manufacturing
• Packaging Lines
• Pharmaceutical Production
• Construction Material Handling

Manual lifting in these industries is a leading cause of injury. With a vacuum solution, your team works faster, safer, and with less effort.

Summary: What Makes Tube Lifters So Effective?

Tube lifters are revolutionizing how industries approach material handling. As shown in the case studies involving concrete umbrella bases and frozen meat blocks, these systems provide real-world solutions to tough lifting challenges — whether the load is heavy, awkward, sticky, or hygiene-sensitive.

Unlike traditional methods, a vacuum lifting system offers flexibility, control, and ergonomics. Operators don’t need to exert physical effort or worry about damaging the product. With the help of suction-based lifting, even irregular or porous surfaces can be managed with ease.

Adria Manipulatorji has proven that their tube lifters are not just tools, but tailored solutions that solve problems in warehousing, food processing, logistics, and more. From reducing strain on employees to increasing speed and compliance, vacuum tube lifters have become an essential part of modern operations.

By choosing a tube lifter, companies gain:

• Improved operator safety and comfort through ergonomic handling
• Faster cycle times and greater productivity
• Compliance with hygiene and industry-specific standards
• Custom solutions for challenging environments

In short, whether you need to lift concrete or move frozen meat, a vacuum lifter is a smart, scalable, and cost-effective choice for today’s industrial demands.

Featured Tube Lifters from This Article

The real-world examples shared above are powered by actual products from our lineup. Below we highlight two of the vacuum lifting systems that were used in these case studies, each tailored to solve unique material handling challenges:

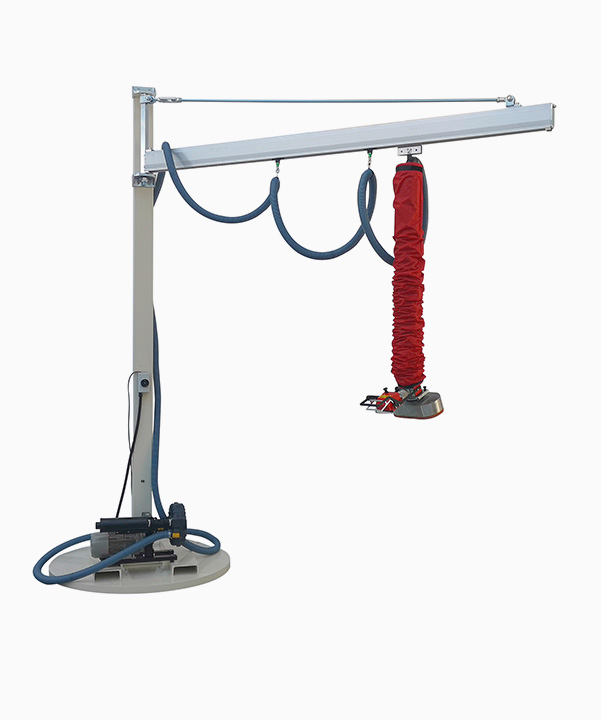

AG064 – Compact and Versatile Tube Lifter

The AG064 is designed for everyday lifting in confined spaces. It’s the ideal solution for lifting concrete umbrella bases with irregular shapes. Featuring an adaptable suction head, reliable vacuum performance, and a compact build, this model offers a cost-effective answer to high-frequency lifting with ergonomic safety.

➡View the AG064 Tube Lifter

AG057 – High-Capacity Tube Lifter for Demanding Environments

The AG057 model features an extended lifting range up to 4000 mm and a capacity of 80–110 kg. It was used in the case study involving frozen meat lifting where hygiene, power, and control were key. Built from stainless steel and equipped with a regulated lift-release system, this vacuum lifter is ideal for food processing and sanitary environments.

➡View the AG057 Tube Lifter

Both systems are examples of advanced ergonomic handling solutions – built to lift smarter, reduce strain, and increase productivity without the need for electricity or complex mechanical setups.

Ready to Transform Your Workflow?

Manual handling doesn’t have to be risky or slow. With a smart vacuum lifting system by Adria Manipulatorji, you modernize your operations while reducing injuries and boosting output.

👉 Contact us now to find the perfect tube lifter for your application.
